SB04-E

Design Guide

About The SB04-E

A full bespoke experience where the only catalog is your imagination! Polished, brushed, sunburst, frosted, grained, guilloché or stone dials.

You name it, we will make it.

Technical specifications

Movement:

  • La Joux-Perret G101
  • Winding Mechanism: Tungsten rotor
  • Diameter: 26mm
  • Height: 4.45 mm
  • Frequency: 4Hz
  • 24 jewels
  • Power reserve: 68 hours

Case & Strap:

  • 316L steel
  • Diameter: 39.5mm
  • Height: 10.3mm
  • Lug to lug: 46mm
  • Water resistant: 100m
  • Crown: Screwdown & Lumed
  • Strap: 20mm Curved

Dial options:

  • Titanium, Guilloche or Stone in various colors and finishes.

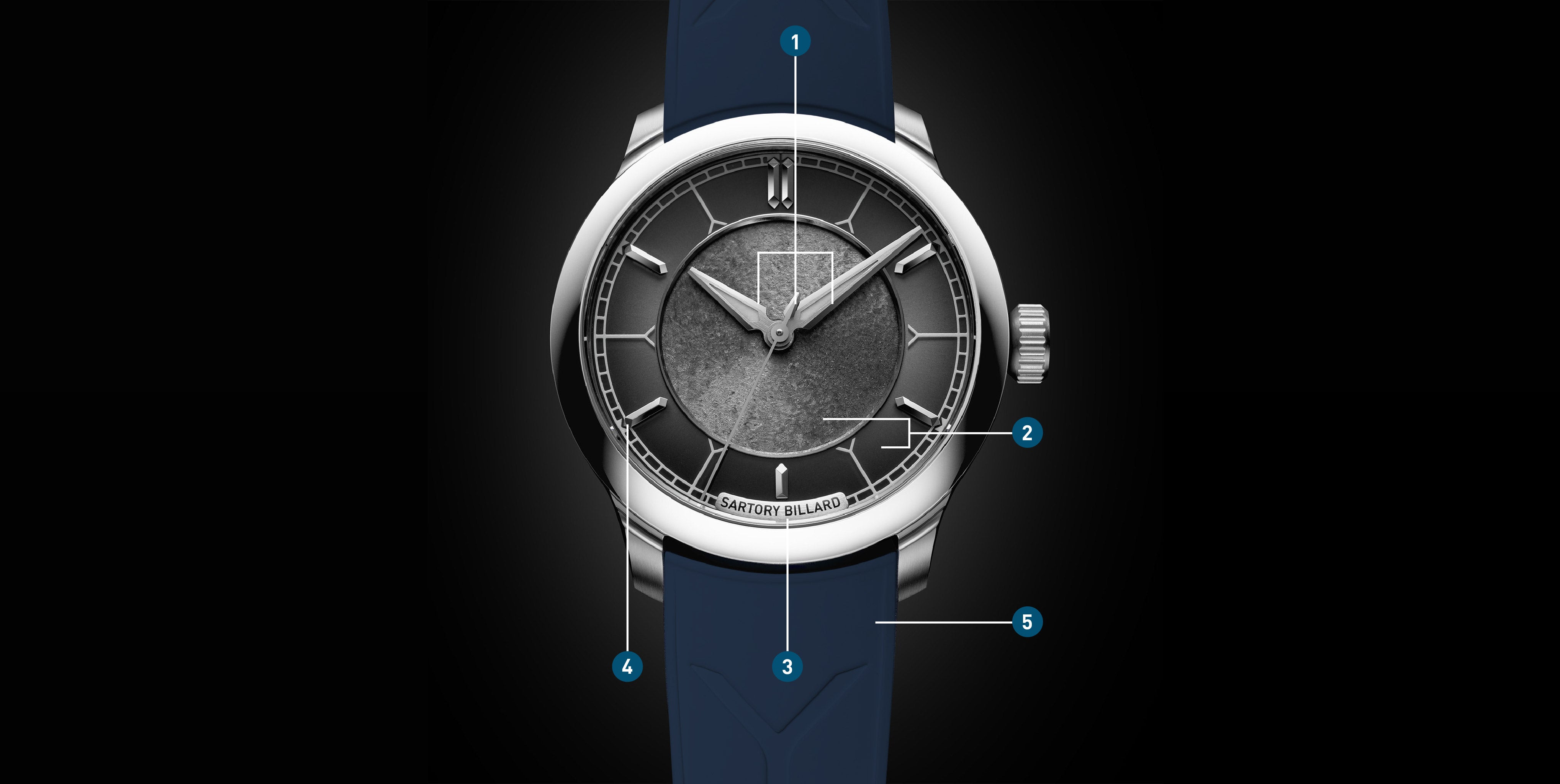

The Dial

  1. Hands
  2. Minutes & hours dial
  3. Logo
  4. Index disk
  5. Strap full custom

1. Hands

Steel color hands or blued, with or without Luminova.
Hour and minutes to share same design.

2. Minutes & hours dial

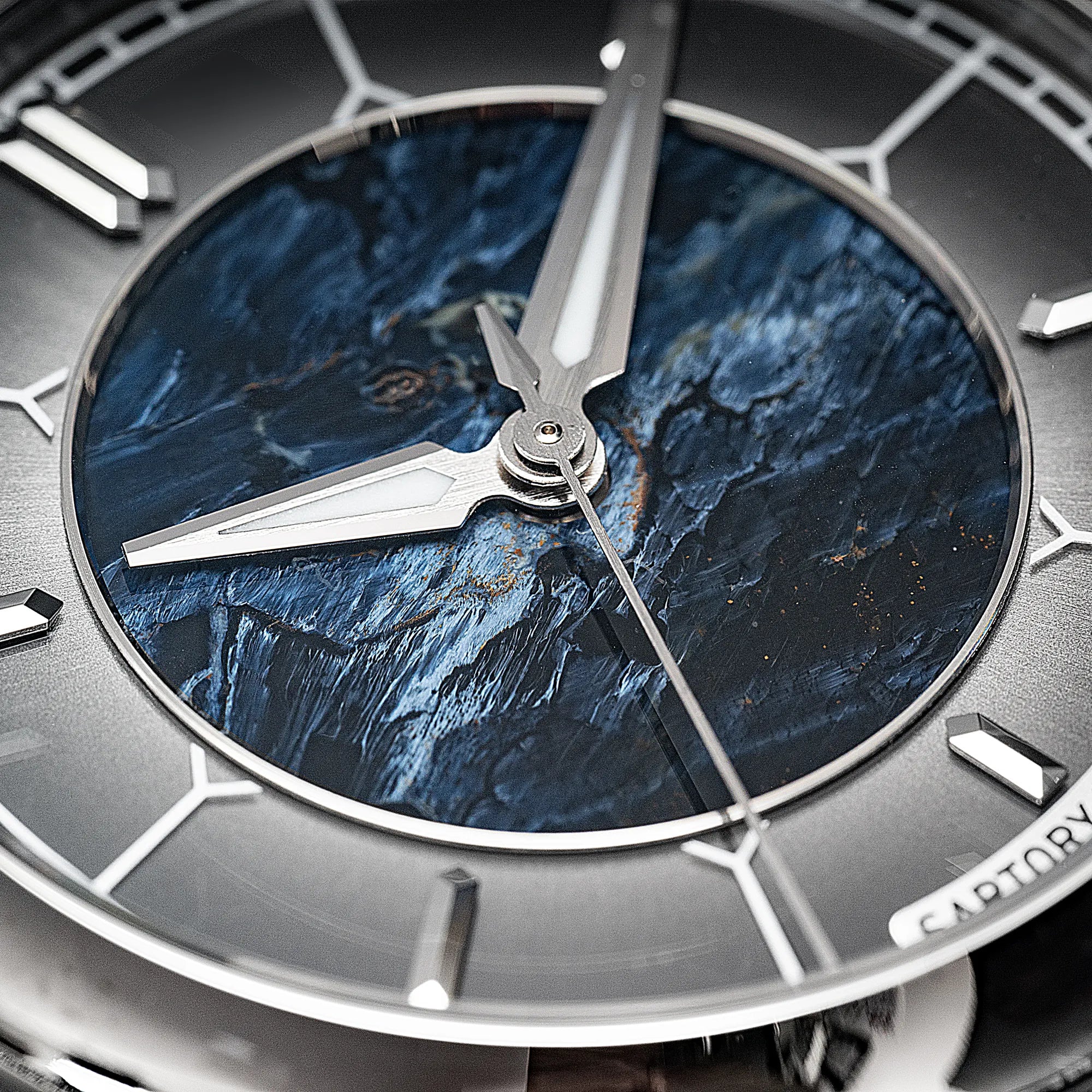

Dials can be any material titanium, stones, guilloché, silver, brass etc.
They can be mixed almost no limitation. Size and location cannot be changed.

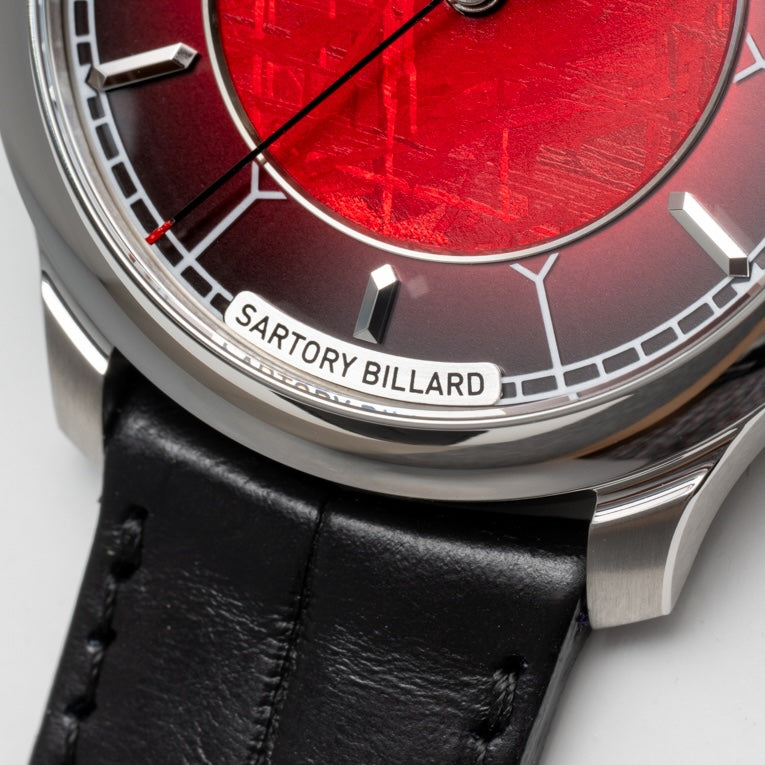

3. Logo

Cannot be changed in style or location.

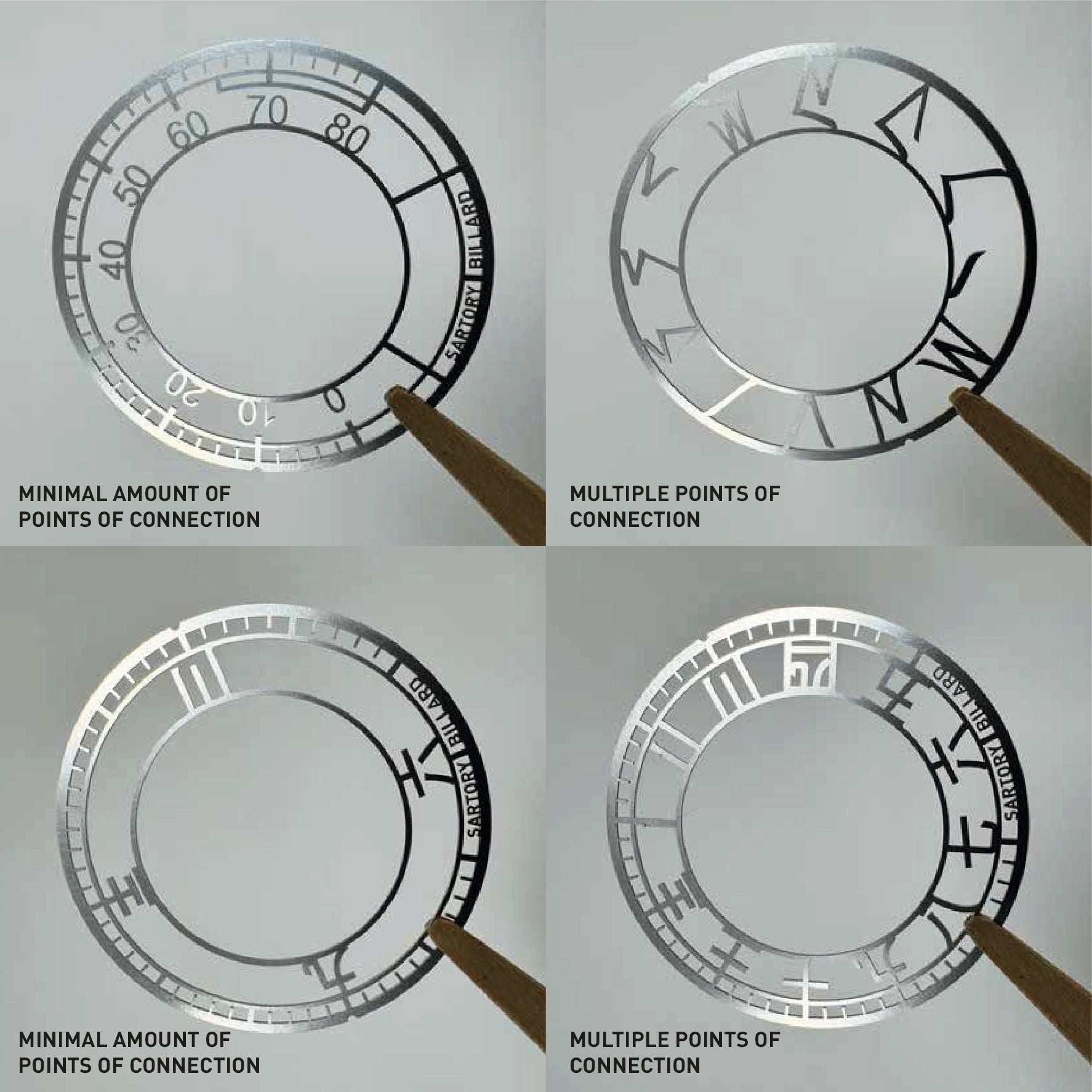

4. Index disk

Bespoke indexes are laser-cut from stainless steel.

Both the external and internal rings are mandatory and have fixed diameters.

The indexes must serve to connect the two rings.

A minimum of two connection bars is required to ensure structural rigidity.

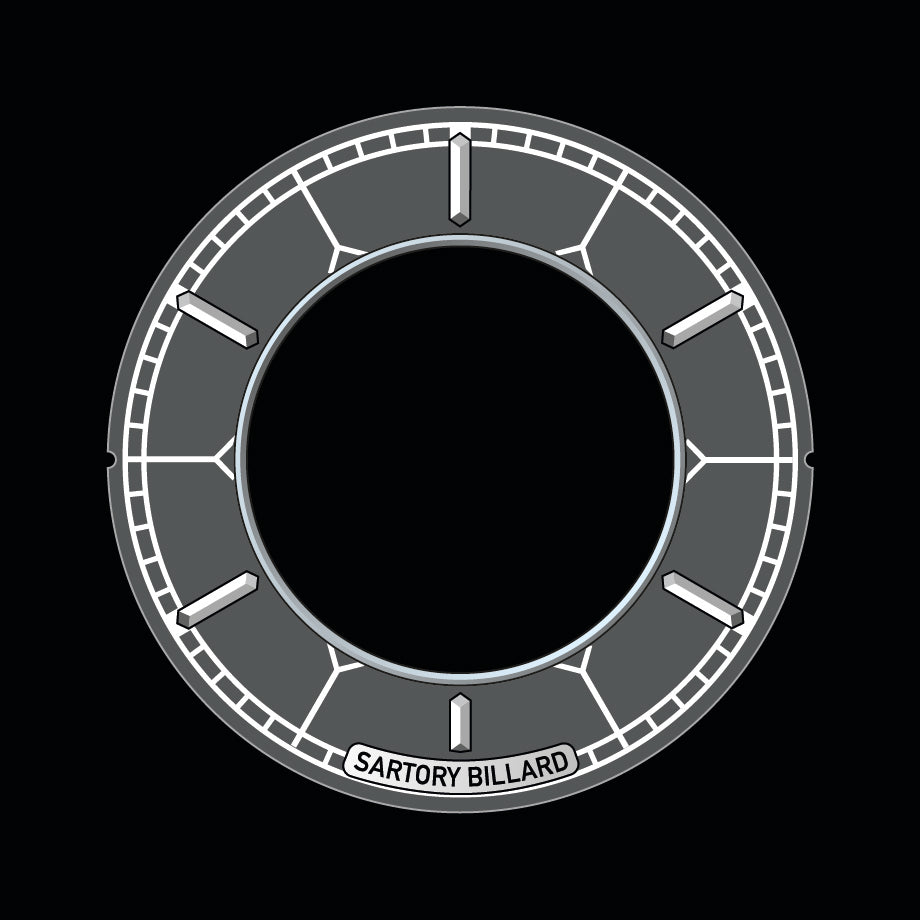

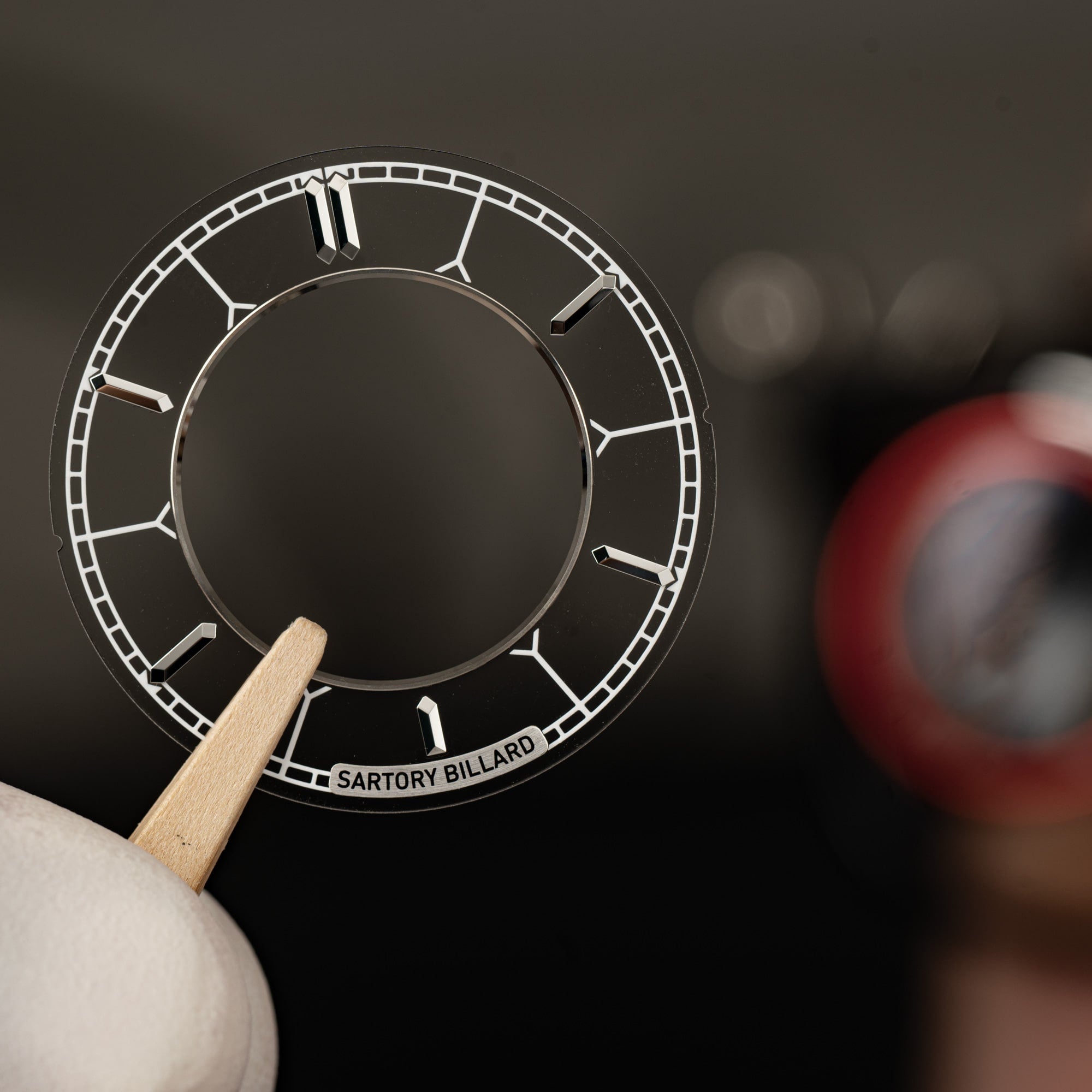

Option 1 - Standard index

Standard index is a ring of sapphire with applied markers, applied logo and pad printed, luminova minute track and Y markers.

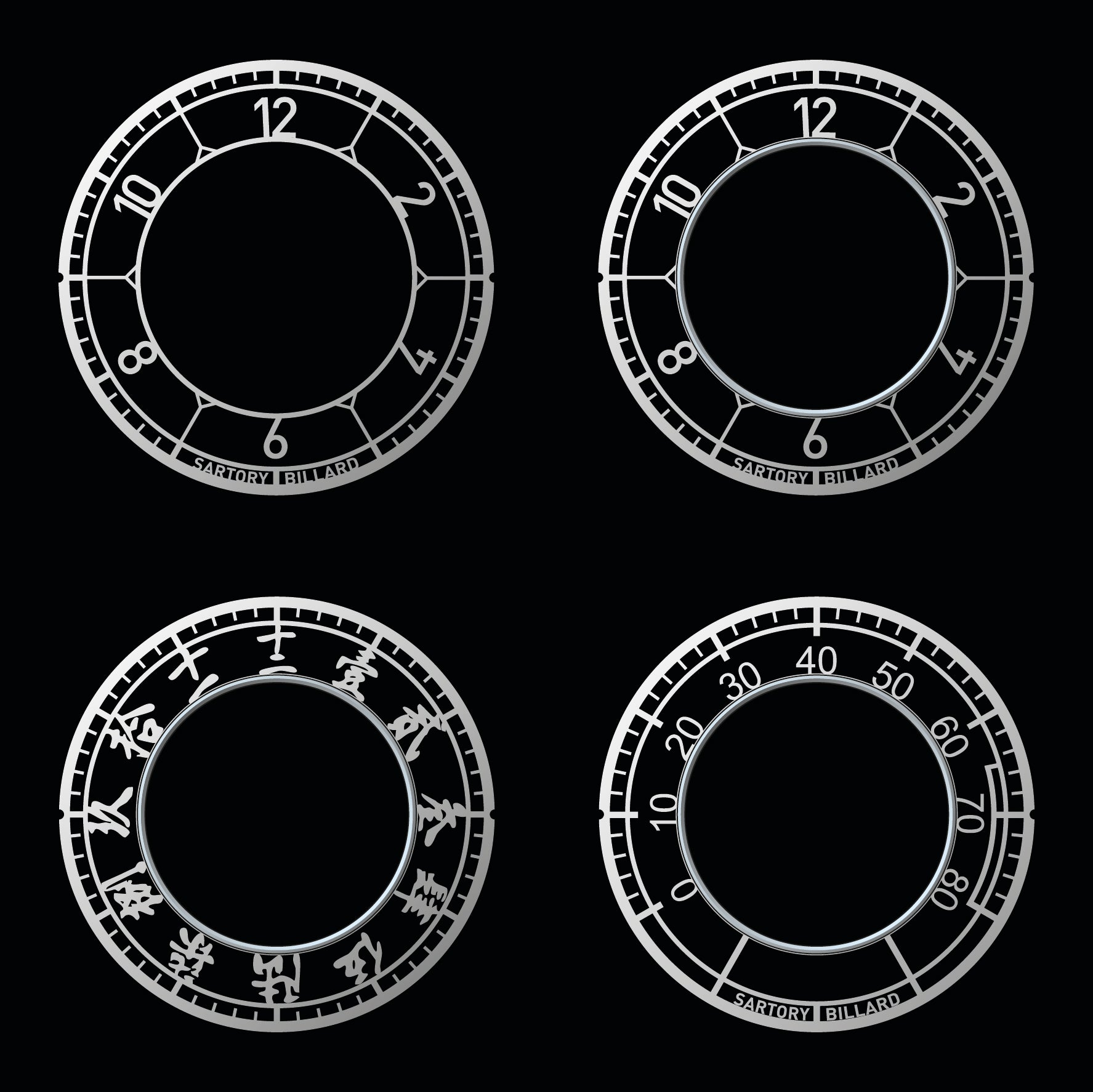

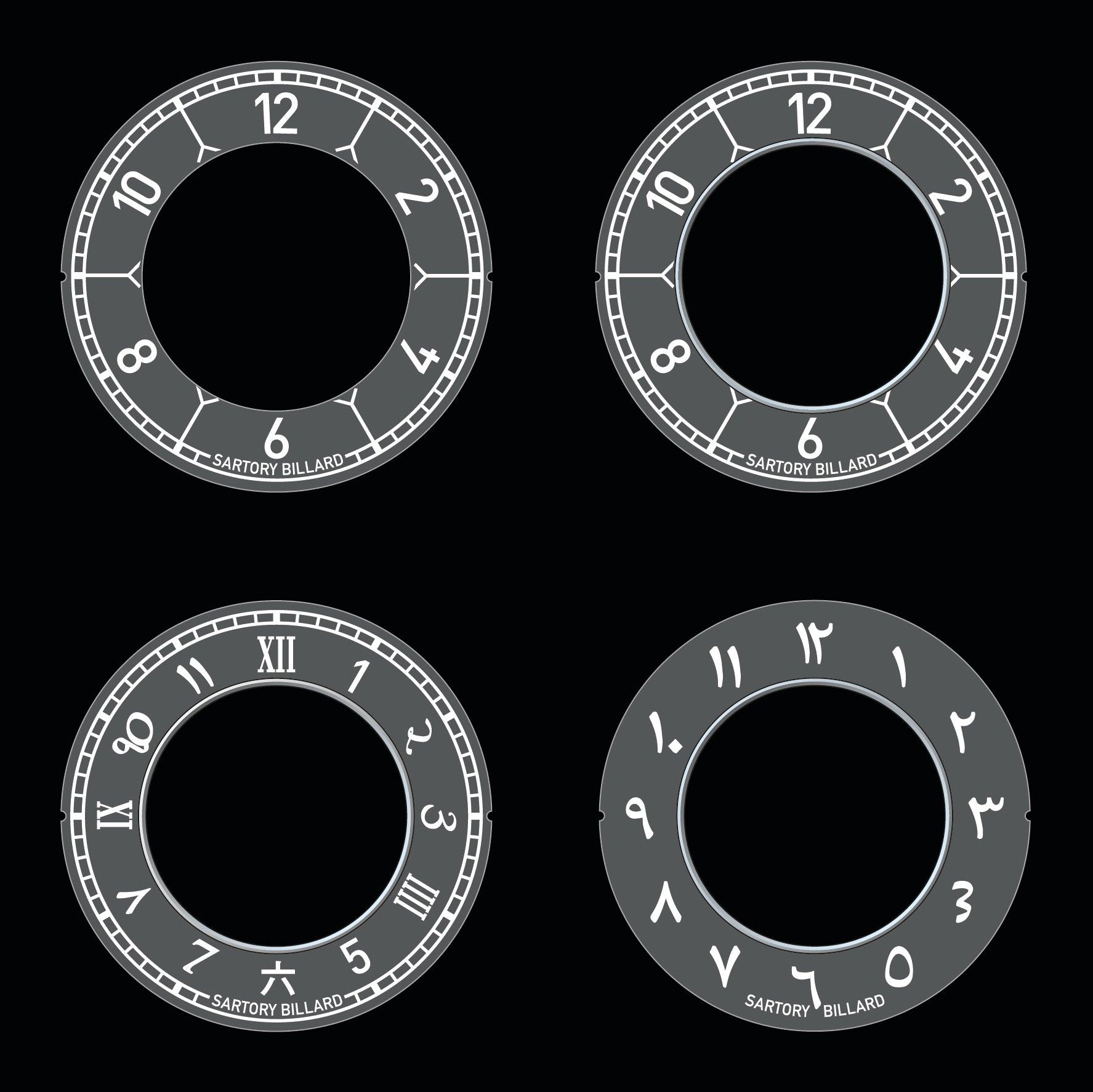

Option 2 - Metal cut index

Metal cut index
With or without internal
Decor metal ring

Option 3 - Sapphire plate and numbers pad printed

Sapphire plate and numbers pad printed
Any color
No metal numbers
With or without decor metal ring

5. Strap full custom

Several hundred of styles & skins are available.

Warning on exotic skins at customs !
I do not recommend them.

Case & back case

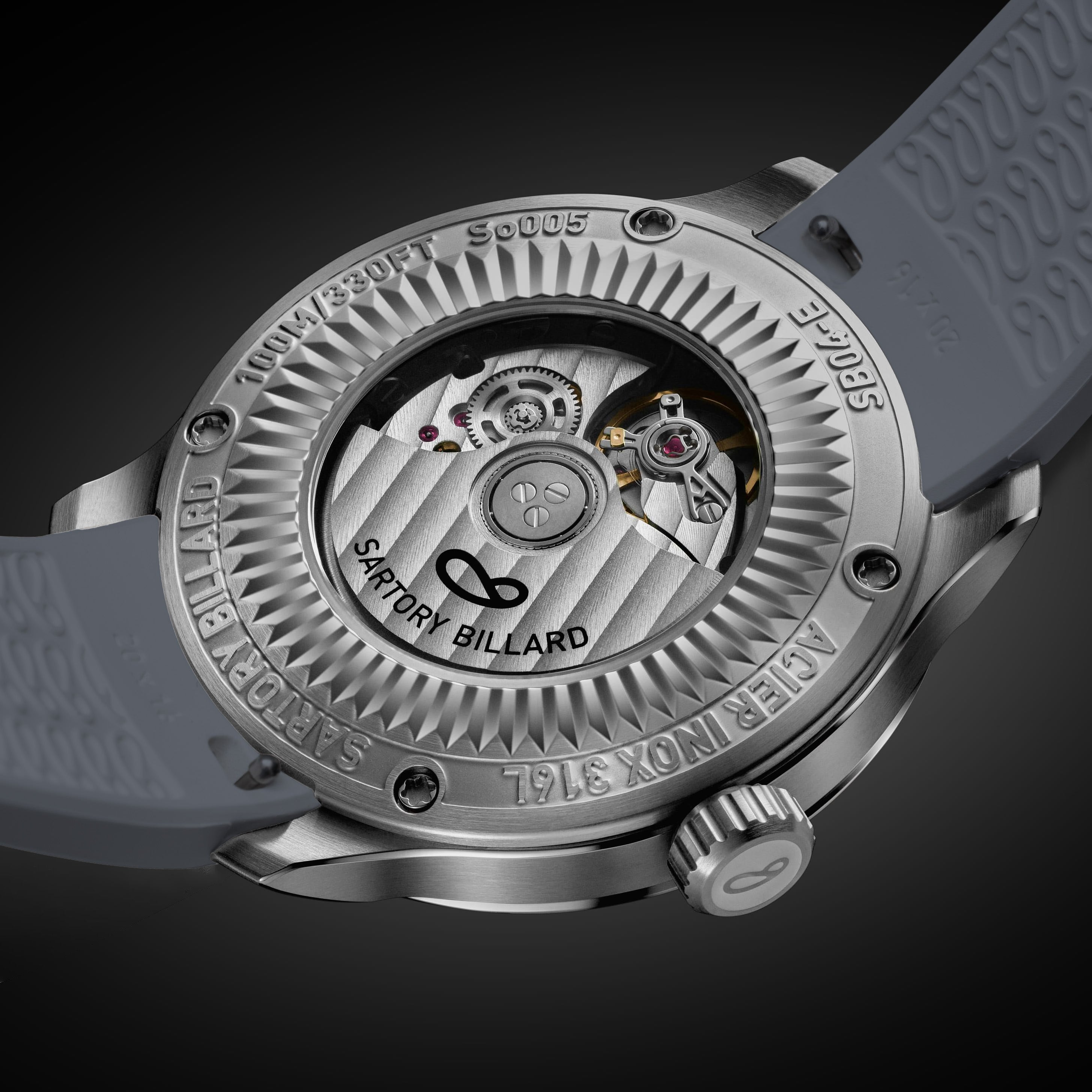

Option 1 - Open case back – Showcases the movement in all its mechanical beauty.

Case & back case

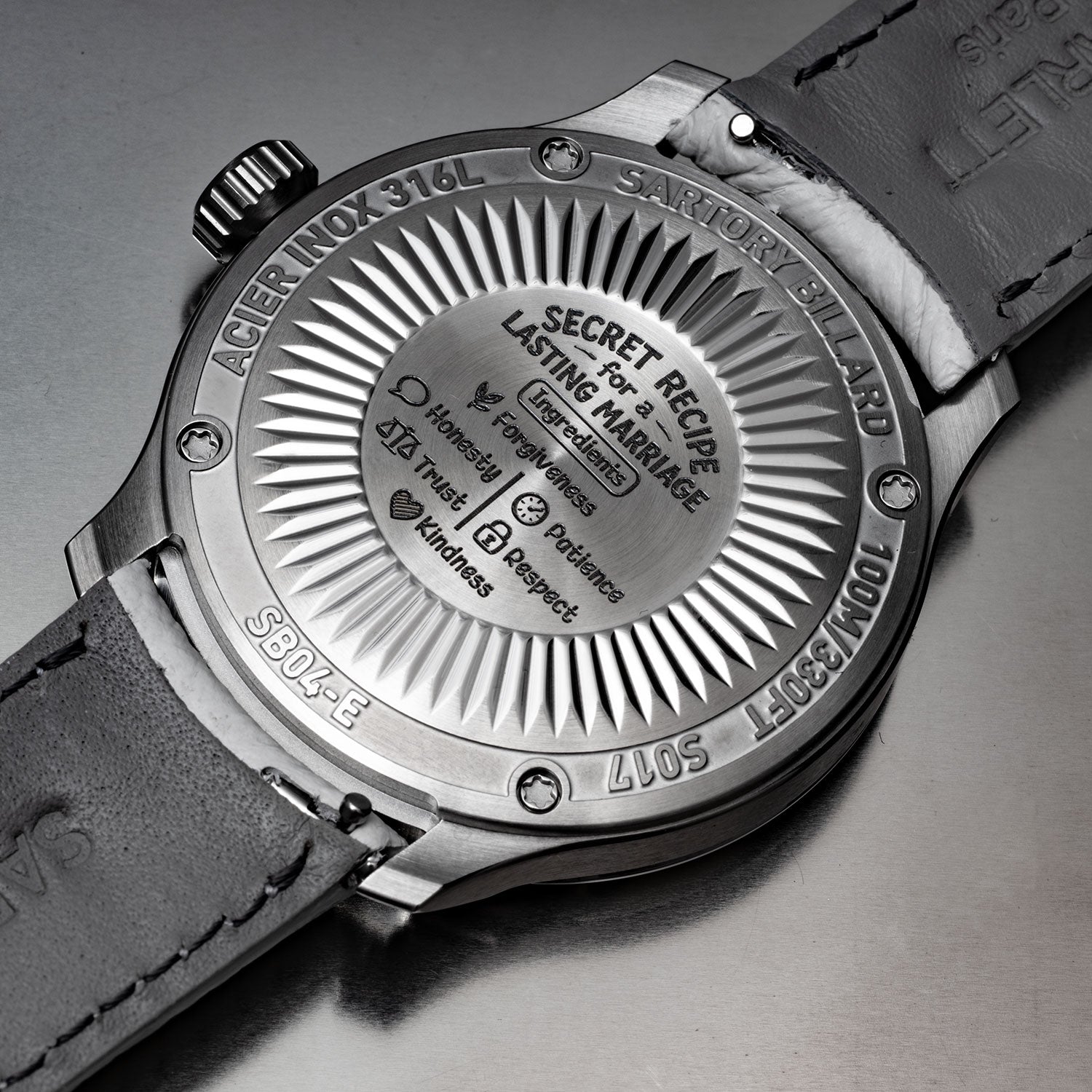

Option 2 - Closed case back – Ideal for a personalized engraving (logo, date, quote, or any meaningful detail).

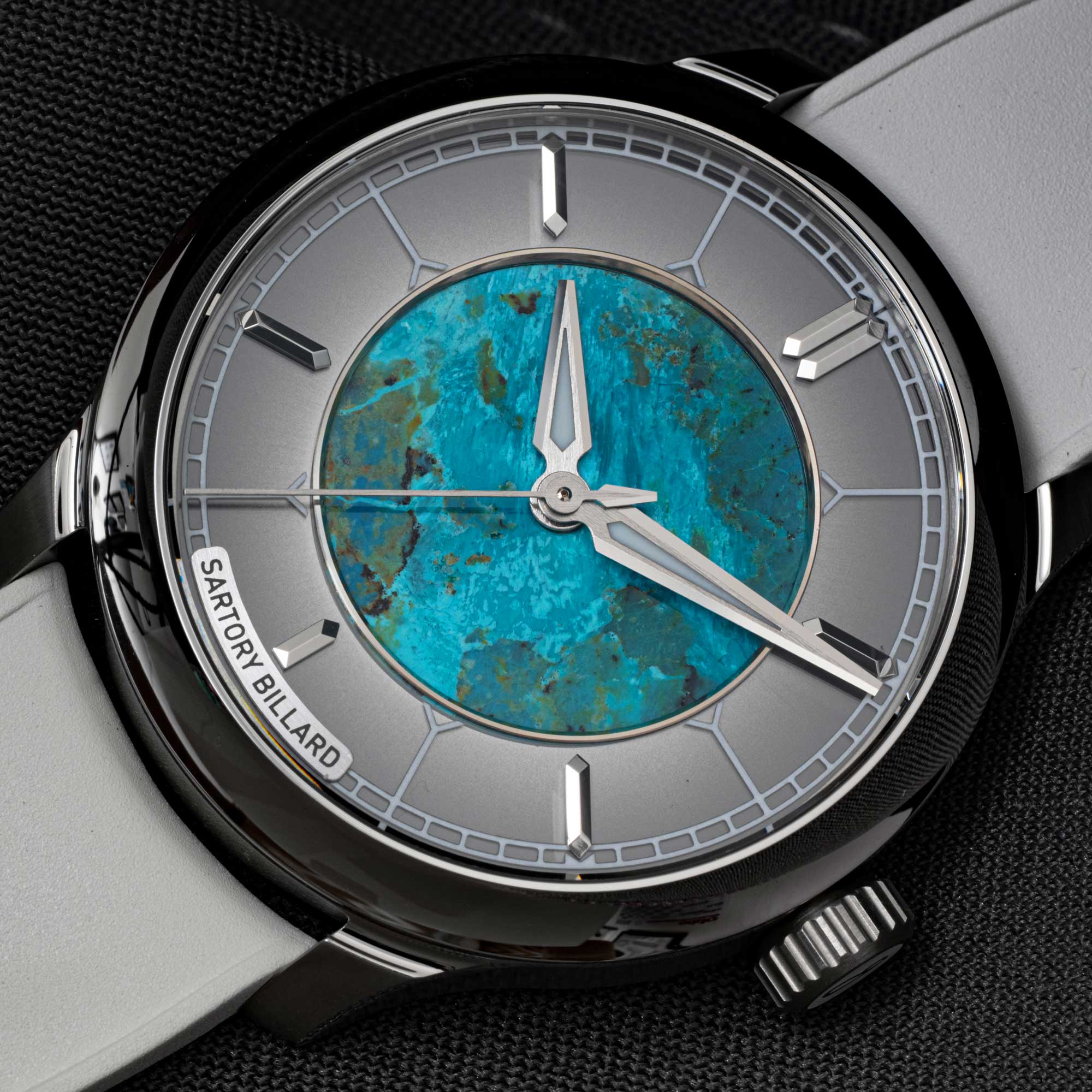

Stones References

Guilloche references
